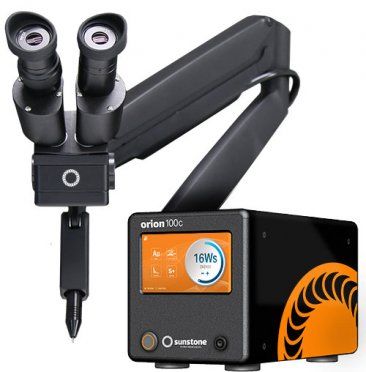

Orion 100c Pulse Arc Welding Sys w/ Mscope & Arm

Stock Code:
24-305-100
Call 09 8200 006 or {{QUOTELINK}} to request a quote/more info

Stock Locations

Description



The Orion 100c pulse arc welder provides power up to 100 joules of pulse-arc weld energy. This micro-welder also allows for low power needs - yielding as little as 3 joules of energy. The 100c power is adjustable in 0.5-joule increments. Weld large workpieces, or near precious components with this versatile, compact, and easy-to-use system.

The Orion 100c is the reliable welding tool that every metalsmith should have. Save time doing simple and complicated work such as seam joints, filling porosity, adding metal, attaching different size pieces, or any other application you may encounter. Increase efficiency with this easy to use system!

Small machine packed with power you’ ll need to get the job done.

Click here to explore the comparison between Pulse Arc Welding vs Laser Welding .

Click here to use the AJS Welder Selector, which will help you determine the best welder for your particular needs.

Click here to download the Pulse Arc welder brochure from Sunstone Welders.







Display (Touch Screen): 5» Full

Languages: 20+

Welder (L x W x H): 27.305 x 15.24 x 16.51cm

Basic Screen Metal Presets: 11

Save Settings Spaces: 30

CE Certificate: Yes

USB Upgradable Software: Yes

PULSE-ARC SPECIFICATIONS

Energy (min-max in Joules): 3 - 100

Length (min-max): Preset

Weld Spot Diameter Range: ≈ 0.75 - 2.5mm

Single Fire Mode: 1 weld/0.7 seconds

Rapid Fire Mode: No

Seam Mode: No

High Frequency Agitation: Basic

Adaptive Weld Ignition: No

Arc Start Technology: Yes

TACK SPECIFICATIONS

Energy (min-max in Joules): 5 - 100

Peak Current (max in Amps): 1,000

Quick Power Settings: None

Microscope Specifications:

Magnification: 5x

UV Protection: > UV 16

IR Protection: > IR 16
