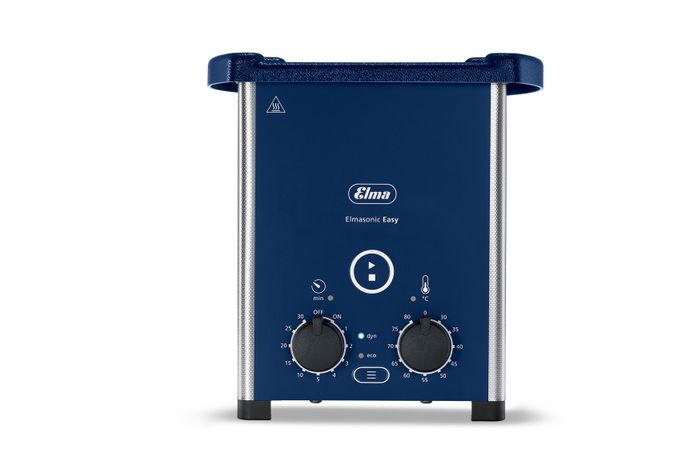

Elma Ultrasonic EASY 20H - 1.75L
Stock Locations
Description
efficient 37 kHz ultrasonic high-performance transducers
cleaning tank made of cavitation-resistant stainless steel
user-friendly and clearly arranged operating panel; sealed against liquid intrusion to protect the electronics
LED display for ultrasonic function
rotary switch for easy preselection of the cleaning time
continuous operating or short-term operation between 1 and 30 minutes
permanent sweep function for optimized sound field distribution through frequency modulation
dry-run protected heating
temperature selectable by rotary switch; from 30°C to 80°C in increments of 5°C (for H units)
LED display for heating operation (for H units)
detachable power cord with IEC plug
selectable temperature threshold with alarm
automatic safety shutdown after 8 hours of continuous operation
automatic safety shutdown at a bath temperature of 90 °C
« Pulse« function
Mains voltage (VAC) 220-240 V
Ultrasonic frequency (kHz) 37
Total power consumption EASY 20 (W) 35
Total power consumption EASY 20 H (W) 155
Effective ultrasonic power (W) 35
Max. ultrasonic peak performance** (W) 280
Heat output (for H units) (W) 120
Device external dimensions W / D / H (mm) 176 / 176 / 219
Tank external dimensions W / D / H (mm) 137 / 123 / 99
Basket internal dimensions W / D / H (mm) 112 / 103 / 50
Max. filling volume (litres) 1.75
Weight (kg) 2.1
Tank material stainless steel
Casing material stainless steel
Sound pressure level (LpAU) (with cover) <70 db
Protection class IP 20
2 year limted warranty
Made in Germany
