GEMAX PRO II DIGITAL MICROSCOPE
Stock Locations
Description

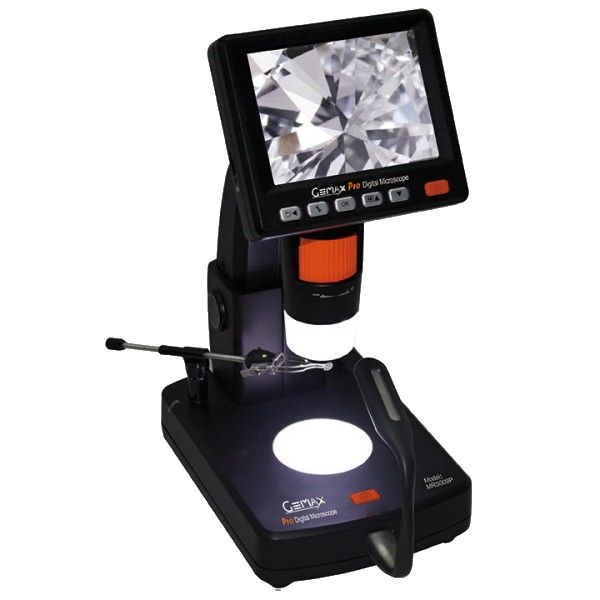

The new Gemax Pro II Digital Microscope, is a innovative device that provides easiest way to share high definition microscopic observation with others. Its equipped with professional microscopic lens, it helps you to see tiny objects easily. The 3.5 Quality LCD Panel brings vivid crystal image in true colours, which you can capture with a click & save in the SD memory card or connect with USB to your computer or with your TV monitors. The New professional microscope's diffused LED lighting system with brightness adjustable from Base, Top & Front is ideal for primary observation, inspection & presentation of Gemstones, Diamonds & Jewellery. Extremely useful device for viewing Cut, Colour & Clarity and as well as Diamond Inscriptions.
Additional Features :
1.
Gem Tweezers : The professional Gem Microscope Tweezer ideal for inspecting loose gems & diamonds.
2. H & A Viewer : Very useful attachment to see Hearts & Arrows cut in Diamonds.
3. Gem Tray : White Ayrilic Tray with different groove size suits well from smallest size of gem / diamonds to the larger ones. Ideal for colour matching / paring for gems & diamonds.
4. Back Ground Colour Paper Set : Different colour paper set in Red, Yellow, Pink, Blue, Purple, Grey, White & Black to change the background for better picture.
5. Ring Holder : A plastic ring holder, provides the hands-free quality check / inspection.
It also comes with exciting Gemax Protable Capture Pro software to measure sizes as Small as 0.001mm, which is extremely helpful when looking at gemstones.
Specifications:
· Image Sensor : 3.5 Mega Pixels CMOS high Speed image sensor (true resolution)
· LCD Panel: 3.5 Screen Optics : High Quality Microscopic full glass lens
· Image Capture Resolution: 14M (interpolated), 8M (interpolated), 5M (interpolated), 3M, 2M, VGA Video Capture Resolution: 720P/WVGA, 30fps
· Focus Range: Manual focus from 10mm to 50mm Magnification : 20X, 220X Optical Magnification Digital Zoom : Up to 4X Digital Zoom
· TV Output: Available (to any monitor with TV in)
· USB Output : USB 2.0 Interface (PC)
· Storage : Support MicroSD/SDHC Card up to 32GB (4GB MicroSD included)
· Light Source: Diffused LED (Adjustable by control wheel) from Top & Bottom and USB Gooseneck
· LED Light Power Source : Rechargeable lithium battery 3.7V 1050mAh / Power adaptor / computer USB port(recharged by adaptor or USB)
· Software : Bundled with software Gemax Portable Capture Pro, compatible with PC, MAC OSD
· Language: LCD Menu in 9 language English, German, Spanish, French, Italian, Portuguese, Japanese, Chinese simple & Chinese traditional.
· Software Language : In 12 language English, German, Spanish, French, Italian, Russia, Portuguese, Dutch, Polish, Japanese, Korean & Chinese.
· Dimensions : L149 * W106 * H232 mm
· Weight: 1250g
· Certificates: With CE, FCC approval, RoHS compliance
