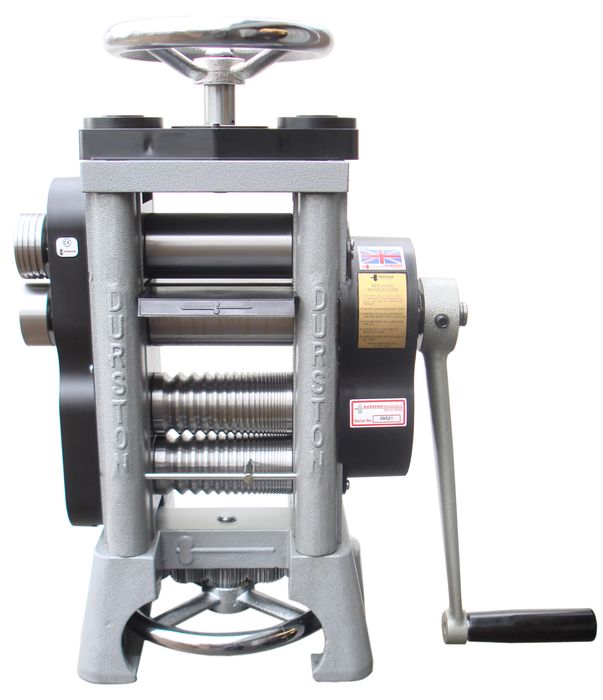

Durston Rolling Mill - Stacked D2 130mm

Stock Code:
16-54040
Call 09 8200 006 or {{QUOTELINK}} to request a quote/more info

Stock Locations

Description



** SPECIAL ORDER ONLY ** Whilst we currently have some stock of special order products available online, this is not always the case. Should these items not be available to purchase online, please call (09) 820 0006 for your nearest showroom, as some locations may have stock in store &/or will be able to assist with your order requirements

The D2 'Stacked Mill' is the first choice for busy workshops with limited space yet needing maximum sheet rolling width and a full range of wire reducing grooves from as much as 10mm initial material size down to 1mm square.

This machine has two sets of rolls, one for sheet (extended for D shapes) and the other grooved for square wire. These are set in high quality maintenance free bronze oilite bearings and are guaranteed for life.

As with the whole of the Durston range of mills the rolls are of the highest quality alloy steel hardened to 67/64 Rockwell C, ground to perfection. Excellent gearing ratio offering a reduction of 7:1 for sheet and 3.5:1 for wire provides for smooth manual operation. Complete with safety covered roll gap calibration disc. Extremely versatile and very rugged in construction this machine is very simple to use with full control over roll passes for both sheet and wire.

Specifications D2 - 130

Reference: Ref: 16-433-000

Roll Size: 130 x 60mm

Sheet Thickness: 6mm

Width of Sheet: 130mm

Wire Capacity: 10 - 1mm

Wire Grooves: 19

Gear Ratio Sheet: 7 : 1

Extension Rollers: 4 ‘ D’ Grooves 4, 3, 2 & 1.5mm

Weight: 73kg

Dimensions (Without Handle): 420 W x 220 D x 565mm H

Gear Ratio Wire: 3.5 : 1

Click here to use our Rolling Mill Selector and determine the best Rolling Mill for you
