Orion mPulse w/ Mscope, Swing Arm & Light Source

Stock Code:
24-305-300
Call 09 8200 006 or {{QUOTELINK}} to request a quote/more info

Stock Locations

Description

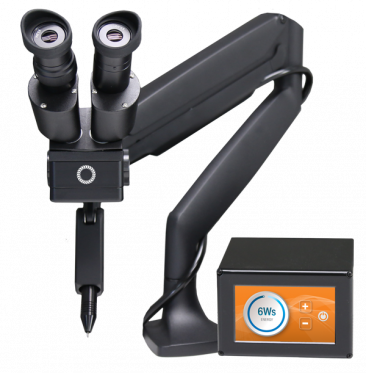

Introducing the smallest pulse arc welder system available: The Orion mPulse 30.

With a 30ws power potential, the mPulse can be used by anyone and has the power to tackle all sorts of jobs. It’ s perfect for those needing a pulse arc welder for making quick welds on a light duty cycle.

The mPulse power settings range from 5.0ws to 30ws, in 2.5ws increments-that’ s 11 different power settings to choose from. The weld spot size on the smallest setting is nearly 1mm, depending upon your material. The largest setting of 30ws will yield a weld spot approximately 1.5mm in diameter, again, depending upon the material you’ re welding.

The mPulse pulse arc welder works amazingly well with Gold, Silver, and many other metals used in jewelry creation and repair. A pulse arc welder becomes an indispensable tool for dental labs or eyeglass repair shops as it gives them the ability to fix broken pieces or frames in seconds. Pulse arc welds are a superior alternative to any solder application; and, measuring in at 14 x 13.3 x 9.2cm, the mPulse takes up almost no space on a work bench.

Need assistance selecting the right welder for you? Click here to visit our welder selector

Click here to download the Pulse Arc welder brochure from Sunstone Welders.





Display (Touch Screen): 4.3» Full

Languages: N/A

Welder (L x W x H): 13.97 x 13.335 x 8.89cm

Basic Screen Metal Presets: N/A

Save Settings Spaces: 0

CE Certificate: Yes

USB Upgradable Software: N/A

PULSE-ARC SPECIFICATIONS

Energy (min-max in Joules): 3 - 30

Length (min-max): Preset

Weld Spot Diameter Range: ≈ 1 - 1.5mm

Single Fire Mode: 1 weld/2 seconds

Rapid Fire Mode: No

Seam Mode: No

High Frequency Agitation: No

Adaptive Weld Ignition: No

Arc Start Technology: No

TACK SPECIFICATIONS

Energy (min-max in Joules): N/A

Peak Current (max in Amps): N/A

Quick Power Settings: N/A

Microscope Specifications: Vertical Stylus Working Space ~ 110mm

Magnification: 0 / 5x

UV Protection: > UV 15 / > UV 16

IR Protection: > IR 14 / > IR 16
